MB-DB09
ManyBest
76109000
| Quantity: | |
|---|---|
1. KEY FEATURES
Different sizes and patterns are available for punching aluminum panel .
It can achieve different visual effect by different punching patterns.
It’s good for ventilation, heat transferring, light transmission and the sound absorbing as well.
2. PRODUCT SPECIFICATIONS
| Raw Material | 1100, 3003 etc |
| Product Type | Solid /Shaped /Carved panels,/large louver etc. |
| Surface treatment | Powder coated, PE, PVDF, Anodised, Woodgrain and Electrophoresis |
| Colour type | Solid colors, Metallic colors, Woodgrain, Marble and Rock color, etc. |
| Regular Thickness | -1.5mm, 2.0mm, 2.5mm, 3mm, 3.5mm, 4mm - thickness about 0.12-0.15mm |
| Max Size | 1500*4000mm. Price is changed by different sizes |
| Service Range | - Provide professional design and suggestion. - Purchase Raw materials and manufacture all kinds of products. |
| Certification | ISO9001:2000, CE, SGS. |
3. Material And Structure Of Aluminum Curtain Wall
Aluminum curtain wall is made of high strength aluminum alloy material such as 1100H24 and
3003H24 with common thickness 2.0mm, 2.5mm and 3.0mm. Regular maximum size is 1400 x 4000mm.
It’s mainly made up of Aluminum solid panel, reinforce rib and angle clip. The whole panel
is much stronger with the reinforce rib which can guarantee the panel flatness and shock
resistance. Meanwhile, the sound absorbing material and insulation material can be installed at the back of the panel.
4. Our Production Process
Square plate →Cutting&Feeding → Hole-punching → Angle-punch →Bending →Examination →Painting
Irregular plate→ Cutting&Feeding → Hole-punching → Angle-punch →Bending →Welding →Examination→Painting
Article plate →Rolled material →Punching →Leveling → Shaping by rolling →Examination → Packing
Article plate →White raw material →Punching →Leveling → Shaping by rolling →Examination →Coating

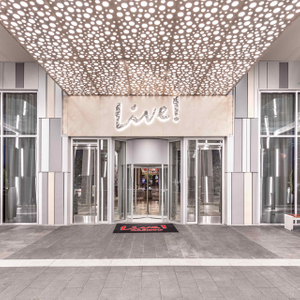

5.Our Perforated aluminum Panel
6.Our Clients
